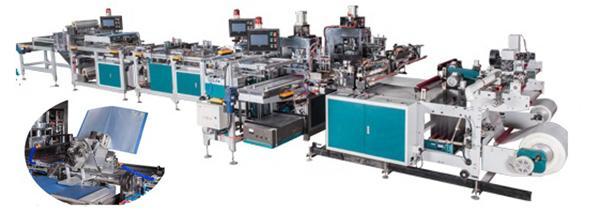

A4 Pocket Display Book Production Line
The A4 pocket display book production line is a double stack production line. The inner pockets can be divided into two stacks and welded on the cover sheets.
It is specially designed for data bags. All production processes, from raw material processing to final product completion, is completed in a fully automatic manner, which saves labor costs and simplifies the production processes.
Inner and outer sheets combining
Spine label paper placing
Spine label welding

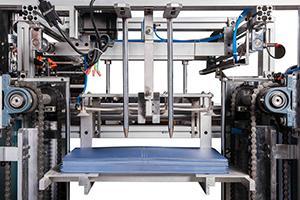

Automatic counting conveying table

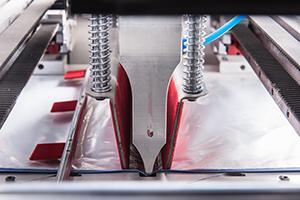

- Spot welding

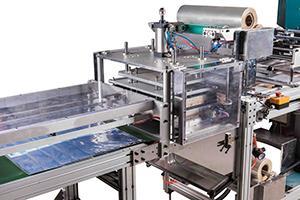

- Sheet conveying

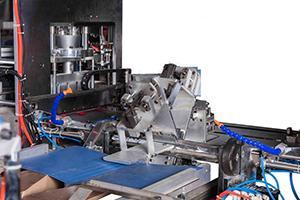

- Spine label paper placing

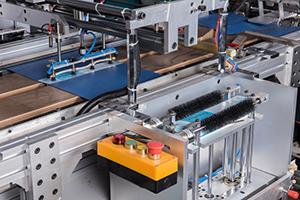

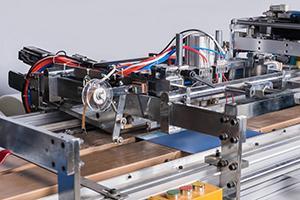

- Spine label welding
- Finished products
- The A4 pocket display book production line uses a double feeding system to feed without stopping the machine, thus improving production efficiency.
- It is equipped with a precise alarm function for no material and blocking conditions, making it easy for operators to feed materials quickly and easily, and handle any faults that might come up. This also improves production safety.
- The machine uses a special synchronous cutting and sealing action so that the data bags produced are the same size, and feature a neat, efficient seal. This also reduces waste to the lowest possible amount.
|Model ||SYS-CL620-A |
|Raw Material Thickness ||Min 0.025mm |
|Product Size ||A4 |
|Single Stack ||8-9 books/min |
|Double Stack ||16-18 books/min |
|Paper Type ||A4 |
|Paper Size ||20/30/40/60 pcs display book |
|Gross Weight ||5600KG |
|Net Weight ||5400KG |
