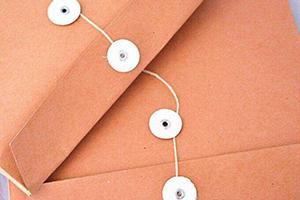

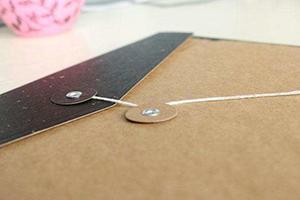

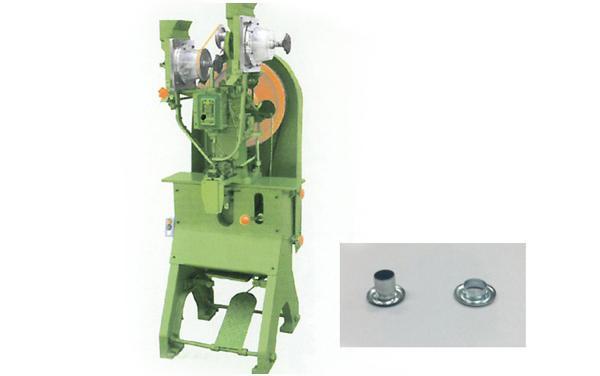

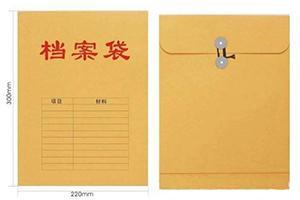

The fully automatic eyelet riveting machine carries out fully automatic feeding of upper and lower buttons. Rivets are automatically fed with no need for manual placement. With multiple functions, the automatic eyelet riveting machine can be used for button installation on file folders, as well as eyelet riveting in shoes, clothing, leather, printing and advertising. Users simply need to change the accessories when replacing eyelets, and similar eyelets can be used for multiple purposes.
Finished productsModel | SYS-5E |
Eyelet Face Diameter | 6-15mm |
Eyelet Diameter | 3-12mm |
Eyelet Length | 3-8mm |
Throat Depth | 130mm |
Motor | 1/2HP |
Height from Floor to Bottom Mold | 800mm |
Machine Dimensions (L×W×H) | 550×590×1430mm |
Net Weight | 160kg |
Gross Weight | 220kg |
