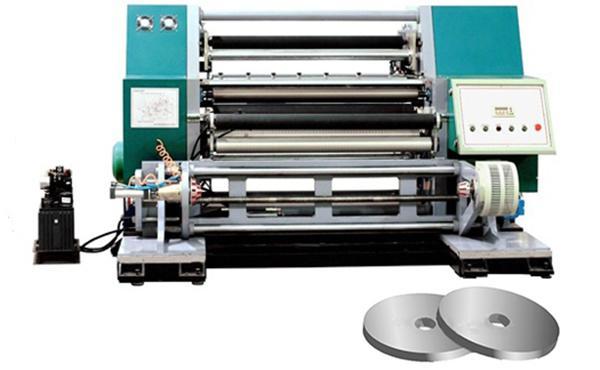

Slitting Rewinding Machine

Slitting Rewinding Machine

The slitting rewinding machine adopts an automatic photoelectric correction system when unwinding, so that irregular materials can be slit normally. The machine is suitable for the slitting of various roll materials such as BOPP, PET, CPP, CPE, PVC and paper.

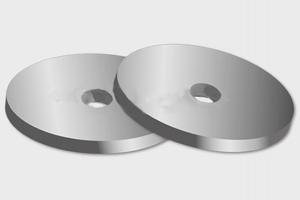

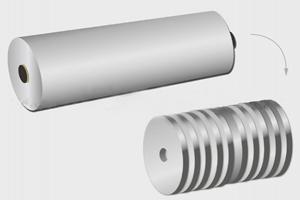

Finished products
Mechanical properties
  • Slitting rewinding machine adopts frequency control to keep running smoothly in the acceleration process.
  • It is equipped with functions of meter counting and alarming. For example, it will alarm when the machine runs out of material or when a fault is detected.
  • It adopts an automatic photoelectric correction system when unwinding, so that irregular materials can be slit normally.
  • This machine adopts manual feeding. With 3 inch air shaft, it can be suitable for the slitting of various roll materials such as PET, CPP, CPE, PVC and paper.
Technical parameters
Min Width of Slit 12mm
Max Width of Slit 600mm
Speed 20-200m/min
Thickness 0.02-0.18mm
Power Consumption 11KW
Max Die of Rewind Rolls 350mm Dia
Machine Dimension L×W×H 2200×2300×1600mm
Machine Weight 3000KG
Overall Weight 3100KG
